C3W-DUAL

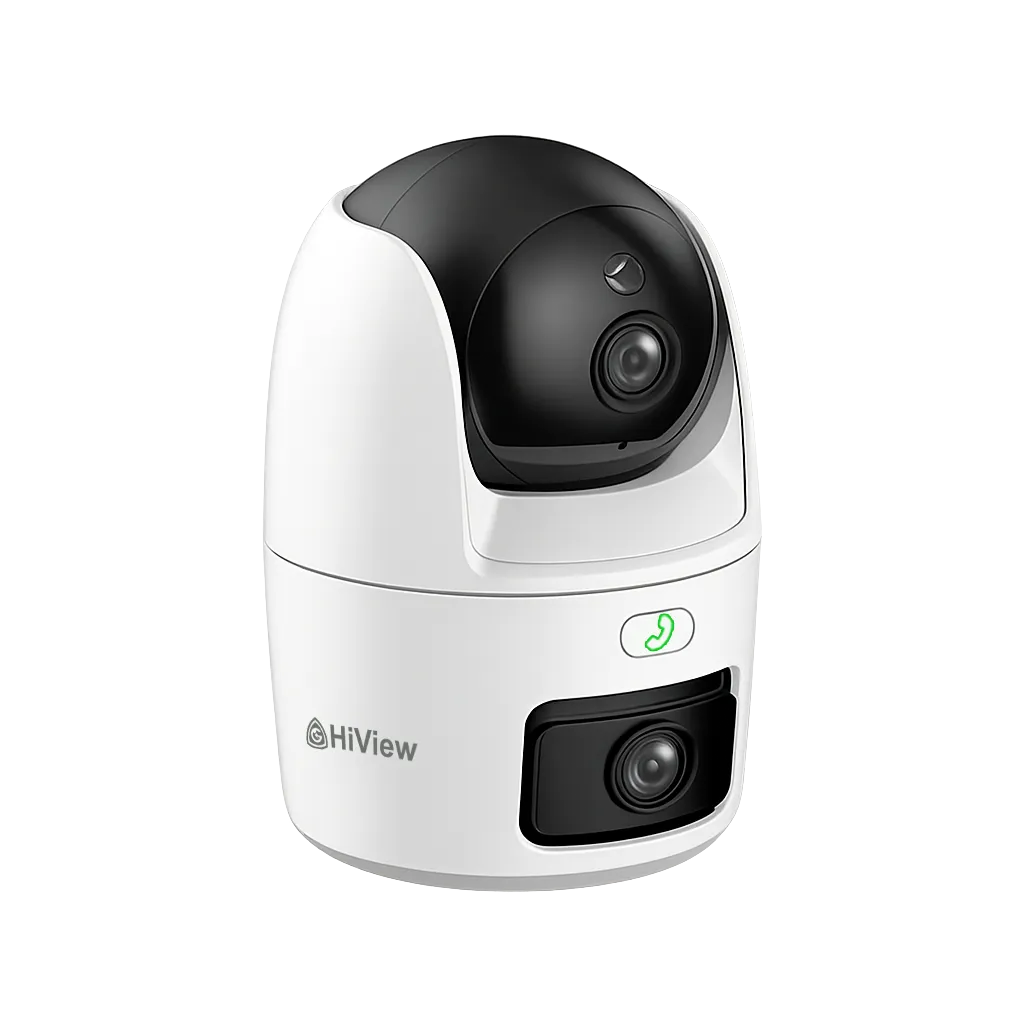

3+3MP Indoor Wi-Fi Dual-Lens Pan & Tilt Camera
3+3MP Indoor Wi-Fi Dual-Lens Pan & Tilt Camera
| Camera (2.8 mm + 6 mm) | |
|---|---|
| Fixed Lens | |
| Image Sensor | 1/3.2" CMOS |
| Max. Resolution | 2304 (H) x 1296 (V) |
| Illumination Distance | IR: Up to 30 m (98.43 ft) |
| Illuminator Number | 2 (IR LED) |
| Angle Adjustment | 0° to 15° |
| Lens Type | Fixed-focal |
| Focal Length | 2.8 mm |
| Max. Aperture | F2.0 |
| Field of View |
H: 90° V: 50° D: 105° |
| PT Lens | |
| Image Sensor | 1/3.2" CMOS |
| Max. Resolution | 2304 (H) x 1296 (V) |
| Illumination Distance |
IR: Up to 50 m (164.04 ft) Warm Light: Up to 40 m (131.23 ft) |
| Illuminator Number |
2 (IR LED) 1 (Warm Light) |
| Angle Adjustment |
Pan: 0° to 349° Tilt: -5° to 90° |
| Lens Type | Fixed-focal |
| Focal Length | 6 mm |
| Max. Aperture | F1.6 |
| Field of View |
H: 44° V: 24° D: 52° |
| Camera (3.6 mm + 3.6 mm) | |
| Fixed Lens | |
| Image Sensor | 1/3.2" CMOS |
| Max. Resolution | 2304 (H) x 1296 (V) |
| Illumination Distance | IR: Up to 30 m (98.43 ft) |
| Illuminator Number | 2 (IR LED) |
| Angle Adjustment | 0° to 15° |
| Lens Type | Fixed-focal |
| Focal Length | 3.6 mm |
| Max. Aperture | F2.0 |
| Field of View |
H: 79° V: 43° D: 94° |
| PT Lens | |
| Image Sensor | 1/3.2" CMOS |
| Max. Resolution | 2304 (H) x 1296 (V) |
| Illumination Distance |
IR: Up to 30 m (98.43 ft) Warm Light: Up to 30 m (98.43 ft) |
| Illuminator Number |
2 (IR LED) 1 (Warm Light) |
| Angle Adjustment |
Pan: 0° to 349° Tilt: -5° to 90° |
| Lens Type | Fixed-focal |
| Focal Length | 3.6 mm |
| Max. Aperture | F2.0 |
| Field of View |
H: 79° V: 43° D: 94° |
| Intelligence | |
| Human Detection | Yes |
| Pet Detection | Yes |
| Audio and Video | |
| Video Compression | H.265 |
| Video Frame Rate |
Main Stream: 2304 x 1296 @ 15 fps Sub Stream: 640 x 360 @ 15 fps *The values above are the maximum frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Video Bit Rate | H.265: 512 kbps - 4096 kbps |
| Day/Night | Auto (ICR) / Color / B/W |
| WDR | DWDR |
| Motion Detection | Yes |
| Image Rotation | 0°/180° |
| Privacy Mode | Yes |
| Built-in MIC | Yes, built-in Mic |
| Built-in Speaker | Yes, built-in Speaker |
| Audio Compression | G.711a |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| Wi-Fi |
IEEE 802.11a/b/g/n/ac/ax 2.4-2.4835 GHz, 2.4G, EIRP ≤20 dBm 5.15-5.25 GHz, 5G, EIRP ≤23 dBm @5150-5250 MHz |
| Wi-Fi Pairing | Bluetooth pairing |
| Storage | Micro SD card (support max. 256 GB) |
| Management Software | Hiview D |
| Mobile Client | iOS; Android |
| General | |
| Power Supply | 5VDC |
| Power Consumption |
Basic: 2.3 W Max.: 5.2 W (pulling stream + IR + PT rotation) |
| Operating Temperature | -10 °C to +45 °C (-4 °F to +113 °F) |
| Operating Humidity | ≤95% RH, non-condensing |
| Casing Material | Plastic |
| Product Dimensions |
Ø80.9 mm x 125.7 mm (3.19" x 4.95") |
| Net Weight | 233 g (0.51 lb) |
| What's in the Box | |
| Installation Position | Map x1 |
| Screw Package | x1 |
| Bracket | x1 |
| QR Code | x1 |
| Quick Start Guide | x1 |
| Legal and Regulation Information | x1 |
| Power Adapter | x1 |
| Power Cord | x1 |
