PC4W-4G-SOLAR

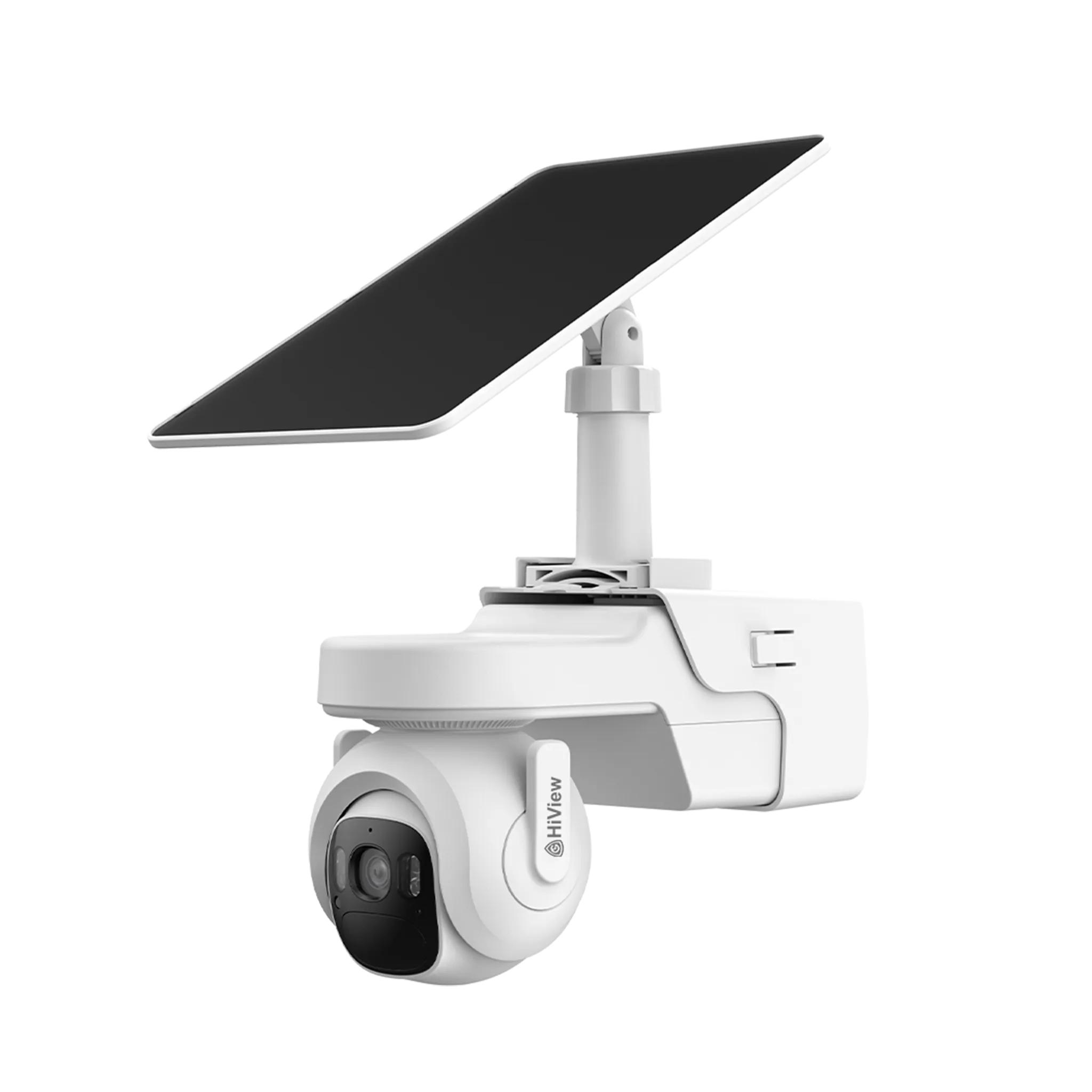

4MP 4G Pan & Tilt Network Camera Solar Monitoring System
4MP 4G Pan & Tilt Network Camera Solar Monitoring System
| Camera | |
|---|---|
| Image Sensor | 1/3" CMOS |
| Max. Resolution | 2560 (H) x 1440 (V) |
| Illumination Distance |
IR: Up to 30 m (98.43 ft) Warm Light: Up to 20 m (65.62 ft) |
| Illuminator Number | 1 (Warm Light); 1 (IR Light); 1 pair (Red and Blue Alarm Light) |
| Angle Adjustment |
Pan: 0° to 360° Tilt: -60° to 0° Rotation: 0° to 360° |
| PIR Sensor Distance |
12 m (device height 2.5 m, placed horizontally) 8 m (device height 2 m, placed at an angle of 30° from horizontal) |
| Lens Type | Fixed-focal |
| Focal Length | 3.6 mm |
| Max. Aperture | F1.6 |
| Field of View |
H: 78.4° V: 42.4° D: 92.4° |
| Audio and Video | |
| Video Compression | H.265 |
| Video Frame Rate |
Main Stream: 2560 x 1440 @ (1-15 fps) Sub Stream: 640 x 360 @ (1-15 fps) *The values above are the maximum frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Video Bit Rate | H.265: 32 kbps - 4096 kbps |
| Day/Night | Auto (ICR) / Color / B/W |
| WDR | Yes |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Built-in MIC | Yes, built-in Mic |
| Built-in Speaker | Yes, built-in Speaker |
| Audio Compression | G.711a |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| Carrier Network System |
(-EAU): FDD-LTE: B1/B3/B5/B7/B8/B20/B28 Applicable Regions: Europe, Middle East, Africa Power Class 3: 23 dBm ±2.7 dB (-LA): FDD-LTE: B2/B3/B4/B5/B7/B8/B28/B66 |
| Management Software | Hiview D |
| Mobile Client | iOS; Android |
| General | |
| Power Supply |
Built-in 68 Wh lithium battery Comes with 8 W solar panel Charging: USB Type-C |
| Power Consumption |
Ultra Power Saving Mode: 0.04 W Power Saving Mode: 0.041 W AOV Mode: 0.197 W Performance Mode: 1.2 W |
| Operating Temperature | -20 °C to +60 °C (-4 °F to +140 °F) |
| Operating Humidity | ≤95% RH, non-condensing |
| Protection | IP66 |
| Casing Material | Plastic |
| Product Dimensions |
284 mm x 172 mm x 360 mm (11.57" x 6.77" x 14.17") (L x W x H) |
| Net Weight | 1055 g (2.33 lb) |
| Battery | |
| Battery Capacity | 68 Wh |
