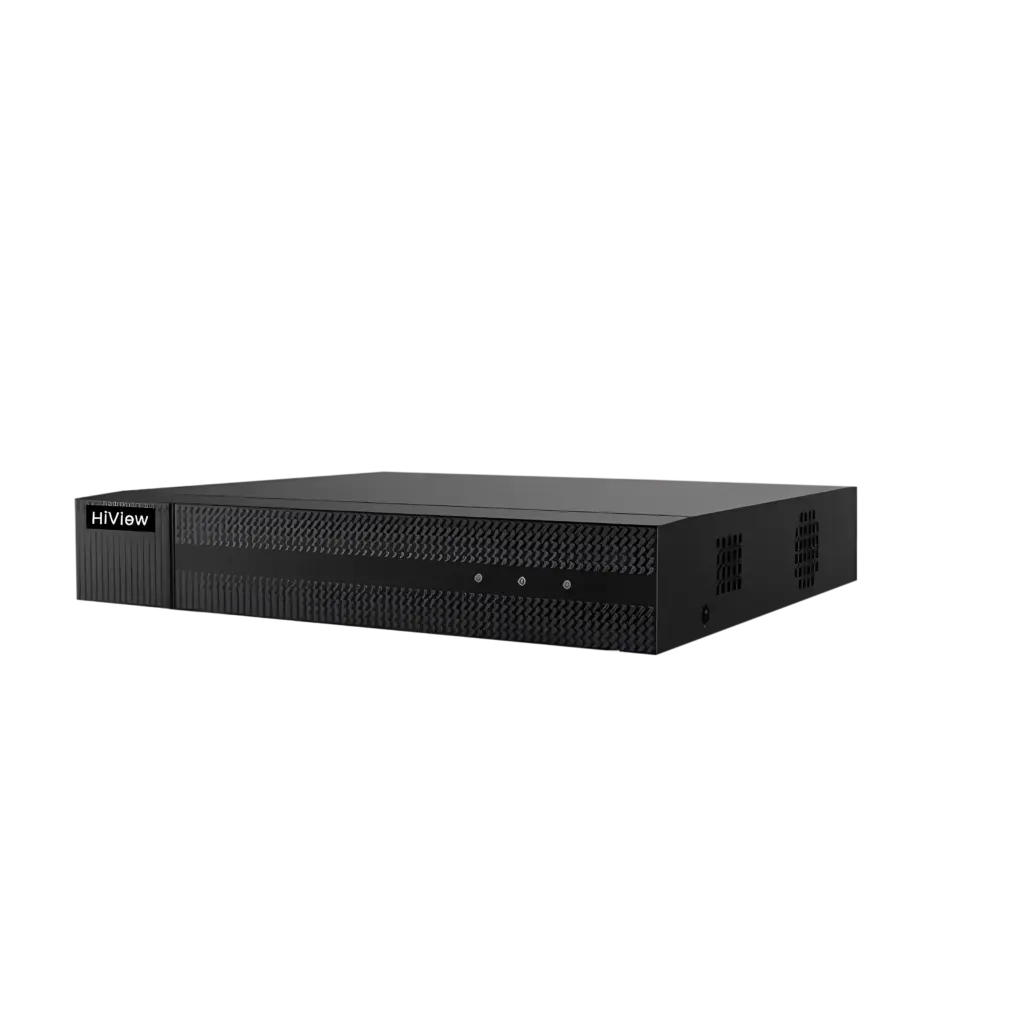

XVR204-M1H
Digital Video Recorder 1080p-Lite Series
- Deep learning based human and vehicle targets classification of Motion Detection 2.0
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
- HDTVI/AHD/CVI/CVBS/IP video input
- Audio via coaxial cable
- Up to 5-ch IP camera inputs (up to 1080p)
- Up to 1080p Lite@15 fps encoding capability
- Max. 1200 m for 720p HDTVI sign
Tag: H-SERIES, Security Camera
DATA SHEETPESAN SEKARANG
| Motion Detection 2.0 | |
|---|---|
| Human/Vehicle Analysis | Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported |
| Recording | |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution |
1080p stream: 1080p Lite / 720p Lite / WD1 / 4CIF / VGA / CIF 720p stream: 720p / WD1 / 4CIF / VGA / CIF SD stream: WD1 / 4CIF / VGA / CIF |
| Frame Rate |
Main stream: 1080p stream: 1080p Lite / 720p Lite / WD1 / 4CIF / VGA / CIF @25 fps(P) / 30 fps(N) 720p stream: 720p / WD1 / 4CIF / VGA / CIF @25 fps(P) / 30 fps(N) SD stream: WD1 / 4CIF / VGA / CIF @25 fps(P) / 30 fps(N) Sub-stream: 4CIF@15fps; CIF/QVGA@25 fps (P) / 30 fps (N) |
| Video Bitrate | 32 Kbps to 4 Mbps |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711U |
| Audio Bitrate | 64 Kbps |
| Video and Audio | |
| IP Video Input | 1-ch (up to 5-ch), Up to 1080p resolution, Support H.265*/H.265/H.264*/H.264 IP cameras |
| Analog Video Input | 4-ch, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDTVI Input | 1080p25, 1080p30, 720p25, 720p30 |
| AHD Input | 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI Input | 1080p25, 1080p30, 720p25, 720p30 |
| CVBS Input | PAL/NTSC |
| HDMI Output | 1-ch, 1920 x 1080/60HZ, 1280 x 1024/60HZ, 1280 x 720/60HZ |
| VGA Output | 1-ch, 1920 x 1080/60HZ, 1280 x 1024/60HZ, 1280 x 720/60HZ |
| Video Output Mode | HDMI/VGA simultaneous output |
| Audio Input | 1-ch RCA (2.0 Vp-p, 1KΩ), 4-ch via coaxial cable |
| Audio Output | 1-ch, RCA (Linear, 1KΩ) |
| Two-Way Audio | Reuse the first audio input |
| Synchronous playback | 4-ch |
| Network | |
| Total Bandwidth | 64 Mbps |
| Network Protocol | TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS |
| Remote Connection | 32 |
| Network Interface | 1, RJ45 10/100 Mbps self-adaptive Ethernet interface |
| Auxiliary Interface | |
| SATA | 1 SATA interface |
| Capacity | Up to 4 TB capacity for each disk |
| USB Interface | Rear panel: 2 x USB 2.0 |
| Alarm In/Out | N/A |
| General | |
| Power Supply | 12 VDC, 1.5 A |
| Consumption | <16 W (without HDD) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Dimension (WxDxH) | 200 x 200 x 45 mm (7.9 x 7.9 x 1.8 inch) |
| Weight | 0.8 kg (without HDD, 1.8 lb.) |
