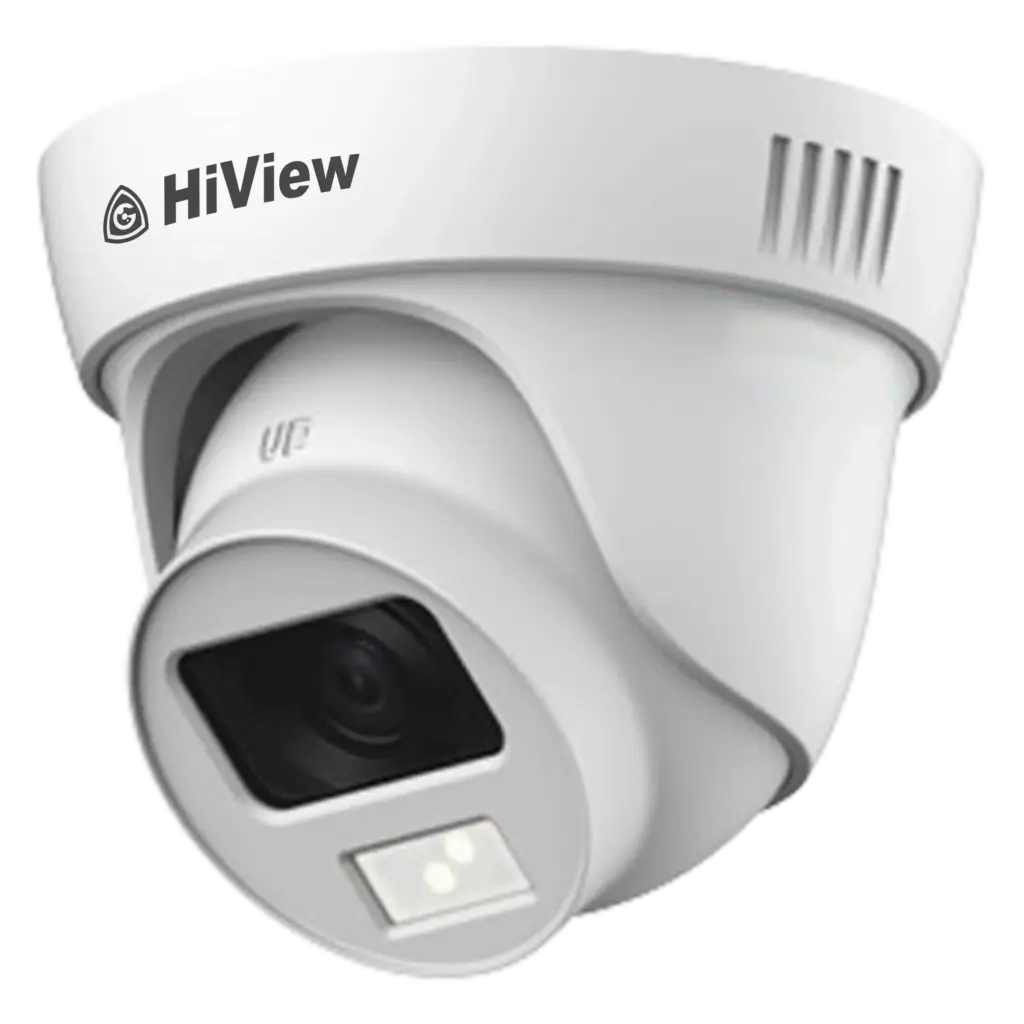

T1290
2MP FIXED Turret Fullcolor Camera
- Max. 30 fps@1080p
- 24/7 color imaging
- Smart Warm LED Light
- 20 m illumination distance.
- 3.6 mm fixed lens (2.8 mm,6 mm optional).
- CVI/CVBS/AHD/TVI switchable.
- 12 VDC
Tag: D-SERIES, Security Camera
DATA SHEETPESAN SEKARANG
| Camera Specification | |
|---|---|
| White Balance | Auto; Area white balance |
| Camera Gain Control | Auto |
| Image Sensor | 2 MP CMOS |
| Noise Reduction | 3D NR |
| Max. Resolution | 1920 (H) x 1080 (V) |
| Illumination Mode | Smart IR & WL (WL Mode: IR Mode) |
| Scanning System | Progressive |
| Mirror | Yes |
| Electronic Shutter Speed | PAL: 1/25 s–1/100000 s; NTSC: 1/30 s–1/100000 s |
| Privacy Masking | Off/On (8 areas, rectangle) |
| Min. Illumination | 0.01 lux @ F2.0 (Color, 30 IRE); 0 lux (Illuminator on) |
| S/N Ratio | >65 dB |
| Certifications | CE-LVD: EN 62368-1; CE-EMC: EN 55032, EN 55035; FCC: 47 CFR Part 15, Subpart B |
| Illumination Distance | Warm light 20 m (65.62 ft) |
| Video Output | CV1/TVI/AHD/CVBS selectable; BNC port; Auto Illuminator On/Off |
| Audio Input | No |
| Illuminator Number | 1 (Warm light) |
| Angle Adjustment | Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360° |
| Power Supply | 12VDC ±30% |
| Power Consumption | Max 2.6 W (12 VDC, IR on) |
| Lens Type | Fixed-focal |
| Auto Focus | No |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F2.0 |
| Field of View | 2.8 mm: H102° V60° D129°; 3.6 mm: H83° V48° D105° |
| Iris Control | Fixed |
| Protection Structure | IP67 |
| Close Focus Distance | 2.8 mm: 0.5 m (1.64 ft); 3.6 mm: 0.7 m (2.30 ft) |
| Casing Material | Plastic |
| Product Dimensions | 97.1 mm × 93.8 mm (3.82" × 3.69") |
| Net Weight | 0.18 kg (0.40 lb) |
| Gross Weight | 0.29 kg (0.64 lb) |
| DORI Distance |
2.8 mm: Detect 41.1 m, Observe 16.5 m, Recognize 8.3 m, Identify 4.1 m 3.6 mm: Detect 50.9 m, Observe 20.3 m, Recognize 10.2 m, Identify 5.1 m |
| Installation | Wall mount; ceiling mount; vertical pole mount |
| Video Frame Rate |
CVI: PAL 1080p@25fps, NTSC 1080p@30fps AHD: PAL 1080p@25fps, NTSC 1080p@30fps TVI: PAL 1080p@25fps, NTSC 1080p@30fps CVBS: PAL/NTSC 960H |
| Resolution | 1080p (1920×1080); 960H (960×576 / 960×480) |
| Day/Night | Auto (ICR)/Color/B&W |
| BLC | BLC; HLC; DWDR |
| WDR | DWDR |
| Operating Temperature | -40°C to +60°C (-40°F to +140°F) |
| Operating Humidity | <95% RH, non-condensing |
| Storage Temperature | -40°C to +60°C (-40°F to +140°F) |
| Storage Humidity | <95% RH, non-condensing |
