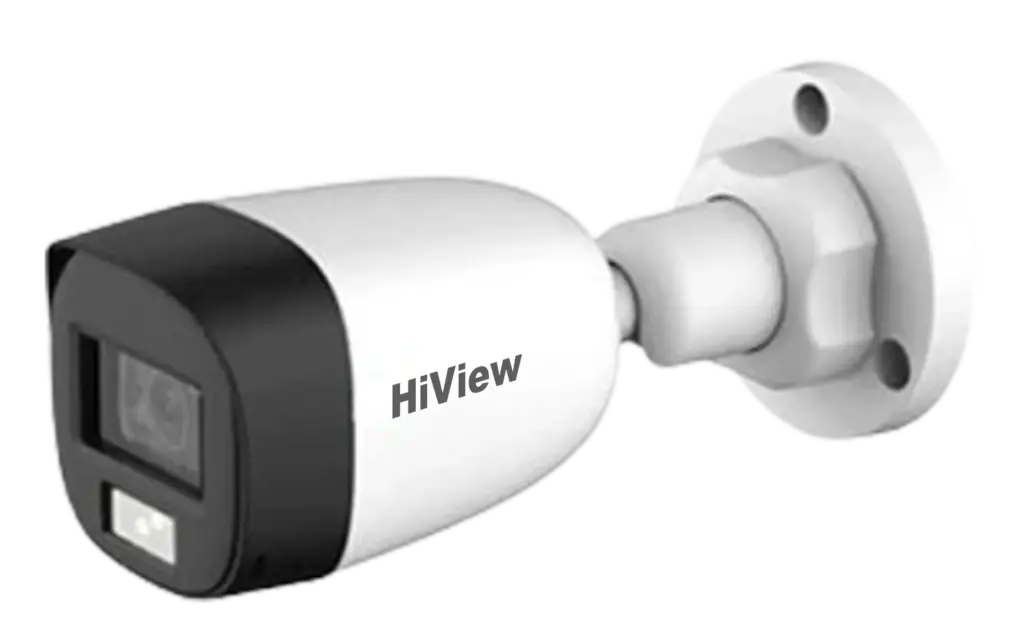

HV-B129
2MP FIXED Bullet Fullcolor Camera
- Max. 30 fps@1080p
- 24/7 color imaging
- Smart warm LED light
- 20 m illumination distance.
- 3.6 mm fixed lens (2.8 mm,6 mm optional).
- CVI/CVBS/AHD/TVI switchable.
- IP67, 12 VDC
Tag: D-SERIES, Security Camera
DATA SHEETPESAN SEKARANG
| Specification | |
|---|---|
| Camera | |
| Image Sensor | 1/2.8 inch CMOS |
| Effective Pixels | 1920 (H) x 1080 (V), 2MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s to 1/100000 s NTSC: 1/30 s to 1/100000 s |
| S/N Ratio | > 65 dB |
| Minimum Illumination | 0.01Lux/Fl.6, 0 Lux with white light on |
| Illumination Distance | Up to 20 m (65.61 ft) |
| Illuminator On/Off Control | Auto; manual |
| Illuminator Number | 1 |
| Pan/Tilt/Rotation Range | Pan: 0° - 360° Tilt: 0° - 90° Rotation: 0° - 360° |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.6 |
| Field of View (Diagonal x Horizontal x Vertical) | 2.8 mm: 126.2° x 106° x 56.5° 3.6 mm: 103.6° x 86.9° x 46.3° |
| Iris Type | Fixed iris |
| Close Focus Distance | 2.8 mm: 0.7 m (2.29 ft); 3.6 mm: 1.2 m (3.94 ft) |
| Lens Detect Observe Recognize Identify | 2.8 mm: Distance: 43.9 m (144.02 ft) Observe: 17.5 m (57.41 ft) Recognize: 8.8 m (28.87 ft) Identify: 4.4 m (14.43 ft) 3.6 mm: Distance: 55.2 m (181.1 ft) Observe: 22.1 m (72.5 ft) Recognize: 11.0 m (36.1 ft) Identify: 5.5 m (18.0 ft) |
| Video | |
| CVI | PAL: 1080p@25 fps; 720p@25 fps NTSC: 1080p@30fps; 720p@30fps |
| AHD | PAL: 1080p@25fps; NTSC: 1080p@30 fps |
| TVI | PAL: 1080p@25fps; NTSC: 1080p@30 fps |
| CVBS | PAL: 960H; NTSC: 960H |
| Resolution | 1080p (1920 x 1080); 720p (1280 x 720); 960H (960 x 576/960 x 480) |
| BLC | BLC/DWDR |
| WDR | DWDR |
| White Balance | Auto; manual |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR |
| Smart Light | Yes |
| Mirror | Off/On |
| Privacy Masking | Off/On (8 area, rectangle) |
| Certifications | CE (EN55032, EN55024, EN50130-4, EN60950-1) FCC (CFR 47 FCC Part 15 Subpart B, ANSI C63.4-2014) |
| Port | |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Audio Interface | N/A |
| Power | |
| Power Supply | 12V ±30% DC |
| Power Consumption | Max 3.1W (12V DC, white light on) |
| Environment | |
| Operating Temperature | -40°C to +60°C (-40°F to 140°F); < 95% (non-condensation) |
| Storage Temperature | -40°C to +60°C (-40°F to 140°F); < 95% (non-condensation) |
| Protection Grade | IP67 |
| Structure | |
| Casing | Metal front cover + plastic main body + plastic bracket |
| Camera Dimensions | 161.3 mm x 69.7 mm x 70.0 mm (6.35" x 2.75" x 2.75") |
| Net Weight | 0.20 kg (0.44 lb) |
| Gross Weight | 0.28 kg (0.62 lb) |
