IPC-B42

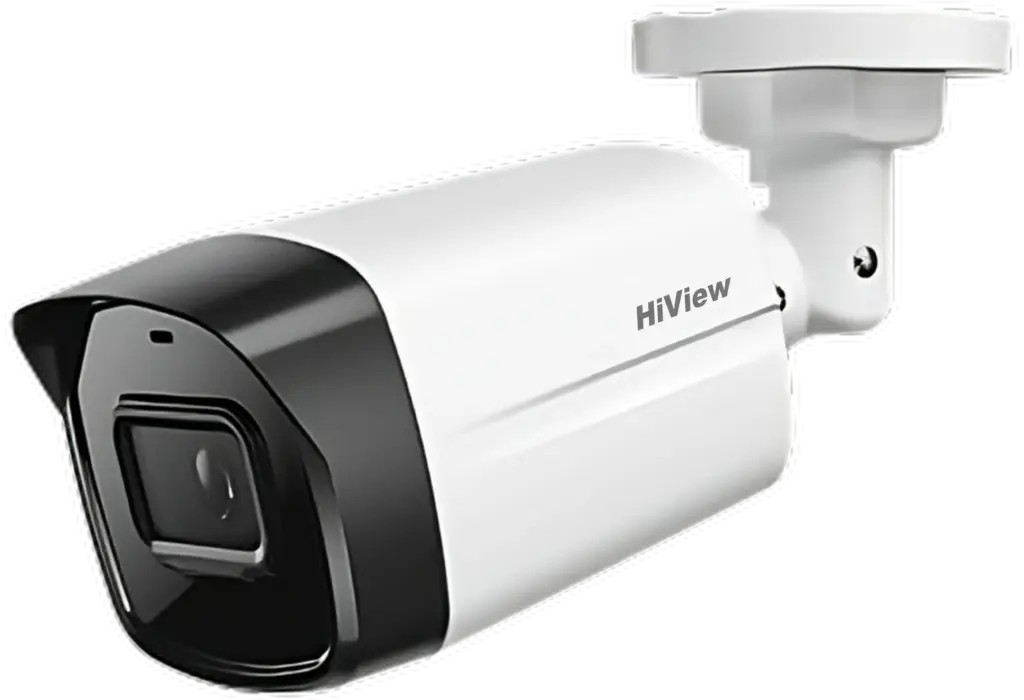

4MP IR Fixed-focal Bullet Network Camera
- 4-MP 1/3″ CMOS image sensor, low luminance, and high definition image.
- Outputs max. 4 MP (2560 x 1440)@30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in IR LED, and the max. illumination distance is 30 m.
- DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
- 12 VDC power supply, easy for installation.
- IP67 protection.
DATA SHEETPESAN SEKARANG
| Specification | |
|---|---|
| Sensor & Resolution | 1/2.7″ Progressive CMOS Sensor Resolution: 4MP (2560 × 1440 px) @ 25/30 fps Signal System: PAL / NTSC |
| Lens | Fixed Lens 3.6 mm (optional 2.8 mm / 6 mm) |
| Field of View (3.6 mm) | H ≈ 84° / V ≈ 45° / D ≈ 100° |
| Lighting | Full Color Starlight with White LED Lighting distance up to 30 m Modes: Smart IR / Warm Light / Auto |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 Adaptive Bitrate: 32Kbps – 8Mbps |
| Image Features | BLC / HLC / DWDR / 3D DNR / AWB / AGC Smart IR, Defog, Mirror, ROI, Motion Detection |
| Audio | Built-in Microphone (Embedded Audio) Compression: G.711A / G.711U |
| Network Connectivity | 1 × RJ45 (10/100 Mbps Ethernet) Protocols: TCP/IP, HTTP, DHCP, DNS, NTP, RTSP, ONVIF Mobile Access: HiView Connect (Android / iOS) |
| Storage | MicroSD Slot up to 128GB Supports Edge Recording & Automatic Backup |
| Power & Consumption | DC 12V ±25% / PoE (IEEE802.3af) Maximum Consumption: 6W (Full Color Mode) |
| Protection & Material | Metal + Plastic Material IP67 – Water and Dust Proof |
| Dimensions & Weight | 160 × 70 × 70 mm | Weight ±0.45 kg |
| Warranty | 1 Year Official Hiview Warranty |
