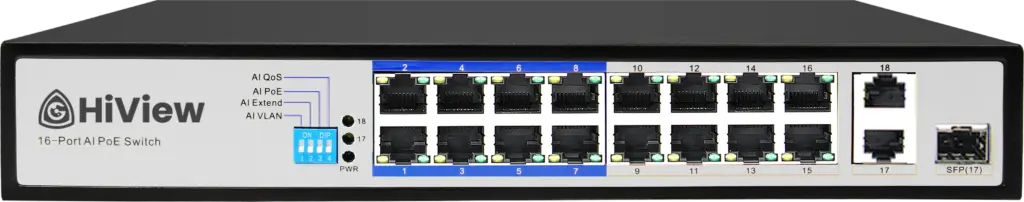

HIK-6016
16 Port AI Poe Switch
- 16 RJ45 ports with 10/100Mbps PoE function (ports 1 to 16)
- 2 RJ45 ports with 10/100/1000Mbps non PoE functionality (ports 17to 18)
- 1 Gigabit SFP fiber optic port (multiplexing)
- Stable and highly reliable operation of equipment
- Air cooling and heat dissipation, intelligent speed regulation, low noise and energy-saving
Tag: Networking, Switch
DATA SHEETPESAN SEKARANG
| Specification | |
|---|---|
| Network Interface |
16 x 10/100 Mbps RJ45 PoE Ports (Port 1 - Port 16) 2 x 10/100/1000 Mbps RJ45 Ports (Port 17 - Port 18) 1 x SFP Combo Port |
| Network Protocol |
IEEE 802.3k, IEEE 802.3U, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at |
| Performance Specifications |
Backplane Bandwidth: 72 Gbps (non-blocking) Packet Forwarding Rate: 5.4 Mpps MAC Address Table: 8K Forwarding Mode: Store and Forward |
| LED Indicator |
Power Indicator: 1 LINK/ACT Indicator: 18 PoE Indicator: 16 |
| PoE Foot Position | 1/2(+), 3/6(-) |
| Power Support |
Single port maximum output power: 30W Maximum power of the whole machine: 150W |
| Physical Specifications | Dimensions (LxWxH): 285 mm x 180 mm x 44 mm |
| Environmental Specifications |
Operating Temperature: 0°C ~ 50°C Storage Temperature: -40°C ~ 70°C Working Humidity: 10% ~ 90% RH non-condensing Storage Humidity: 5% ~ 90% RH non-condensing |
| Safety Regulations | CE / ROHS / FCC / CCC |
