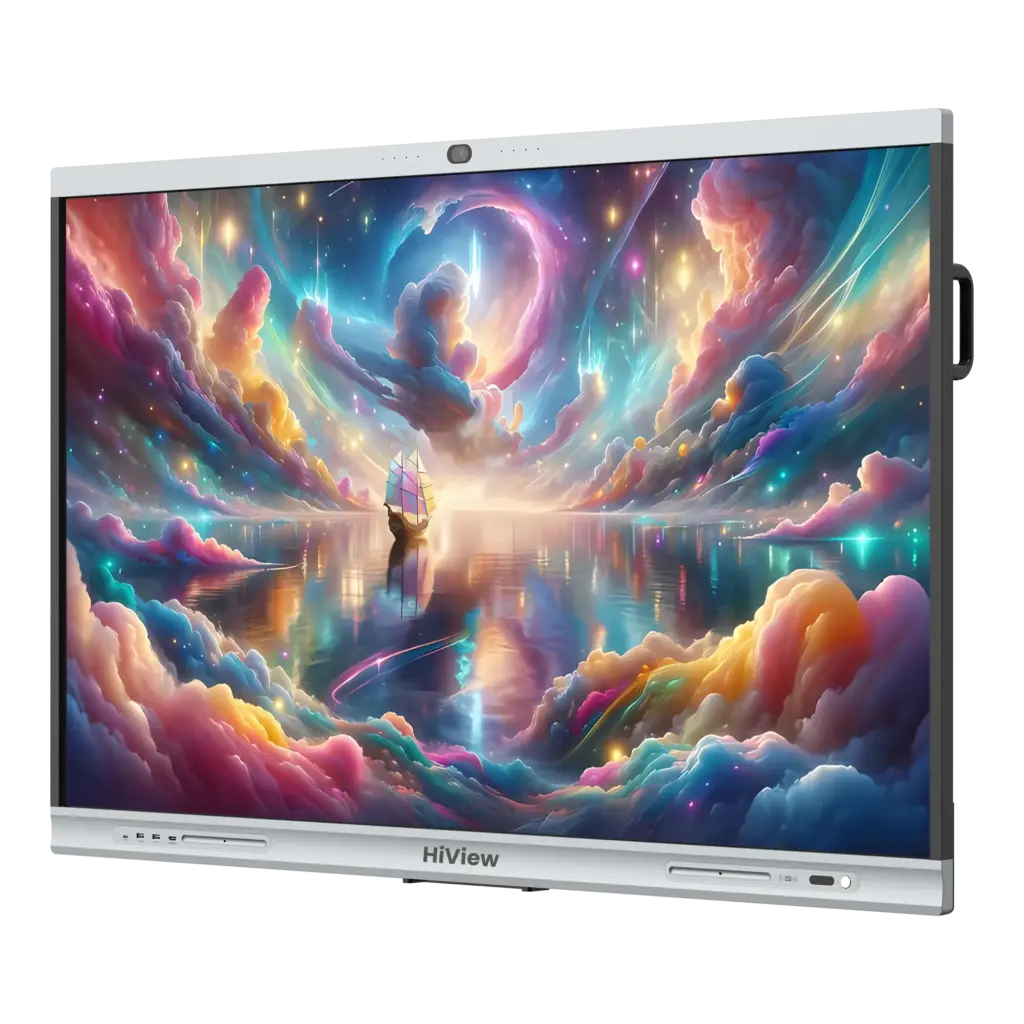

HIK-IFP65MCD420
65 inch Smart Interactive Whiteboard
- Built-in Deephub Meeting software that offers online conferences and customizable support for real-time collaboration.
- Displays in 4K Ultra HD and uses 4K Ul.
- With its 2 built-in mid-high frequency speakers, the device supports 2.0-channel audio output, and its total power is 40 W.
- Produces vibrant visuals through its NTSC High Gamut Screen that offers wide color coverage up to 90% and its advanced technology that produces accurate color reproduction of AE<1.5.
- Features split screen, and performs screen sharing between the whiteboard and phones, computers, tablets and more devices.
- Microsoft Office and other related software can be installed, and it can play audio and video files in various formats.
- Offers a smooth writing experience through handwriting recognition, pen writing, its fast writing response speed, and pen pressure recognition.
- Support Al recognition of text and drawings.
- Intelligent pen detection that automatically wakes up the whiteboard for annotations when the pen is lifted.
- Built-in 8 array microphone and Al 48M camera that supports 9x zoom, produces high-quality visuals and audio communication, and supports auto-framing and voice tracking.
- Seamlessly calls the camera and microphone of the whiteboard through itsType-C IN port and screen projector.
- Supports unlocking through NFC.
- Includes a full-featured Type-C IN port.
DATA SHEETPESAN SEKARANG
| Specification | |
|---|---|
| AP Wi-Fi Standard | 802.11b/g/n/a/ac/ax |
| Station Wi-Fi Standard | 802.11b/g/n/a/ac/ax |
| Operating System | Android 11.0 (Upgradeable OTA to Android 14.0) |
| Wi-Fi Frequency Range | 2400-2483.5 MHz, 5150-5350 MHz, 5470-5725 MHz, 5725-5850 MHz |
| MAX Power Transmission (Wi-Fi) |
≤20 dBm@2400-2483.5 MHz; <23 dBm@5150-5250 MHz; ≤20 dBm@5250-5350 MHz; <27 dBm@5470-5725 MHz; ≤14 dBm@5725-5850 MHz |
| CPU | Quad-core A73 + Quad-core A53 |
| CPU Frequency | 2.2 GHz + 2.0 GHz |
| GPU | ARM Mali-G52 MP8 (8EE) |
| Bluetooth | Yes, BR/EDR/BLE, BT5.2, Frequency Range: 2400-2483.5 MHz, Max Power Transmission ≤20 dBm |
| RAM | 8 GB |
| ROM | 64 GB |
| Card Swiping with NFC | Yes, supports binding up to 10 cards |
| Operating System of External Module | Windows 7/8/10 |
| Wi-Fi Hotspot | Dual-band 2.4G/5G; Supports enabling hotspot and Wi-Fi at the same time |
| MAX Power Transmission (RFID) | 42 dBuA/m @10 m |
| LCD Panel | 65 inch, DLED Backlight, 16:9 Aspect Ratio, Brightness 350 cd/m², Resolution 3840x2160 |
| Video Input | 2 x HDMI 2.0 (4K@60Hz) |
| Video Output | 1 x HDMI 2.0 (4K@60Hz) |
| Audio Output | 1x 3.5mm Line Out; 1x SPDIF |
| Touchscreen | Infrared, Response Time 8 ms, Android: 31 points, Windows: 50 points, Valid Touch 1.5 mm, Writing Mode Finger + Pen |
| Camera | 48 MP, Auto Control: Auto white balance, Field of View D:99°;H:87°;V:49°, Face Detection: Yes |
| Speaker | 2 channels, Front-end: 2 x 20W, Frequency: 150Hz-20kHz |
| Microphone | 8 arrays, Pick-up Distance 8-12m, AGC: Yes, Echo Cancellation: Yes, Omnidirectional |
| Power Supply | 100-240 VAC, 50/60 Hz |
| Power Consumption | 220 W (basic), 300 W (max) |
| Operating Temperature | 0°C to +40°C (+32°F to +104°F) |
| Storage Temperature | -20°C to +60°C (-4°F to +140°F) |
| Operating Humidity | 10%-90% (RH), non-condensing |
| Storage Humidity | 10%-90% (RH), non-condensing |
| Product Material | Metal casing, Protective Glass: 3.2 mm Anti-dazzle tempered glass |
| Casing Color | Frame: black sides, Top/Bottom: starry gray |
| Product Dimensions | 1485.5 x 87 x 942 mm (L x W x H) |
| Frame Size | Top: 40.9mm; Left/Right: 17.5mm; Bottom: 65.3mm |
| Packaging Dimensions | 1623 x 227 x 1068 mm (L x W x H) |
| Net Weight | 41 kg (90.39 lb) |
| Gross Weight | 59.6 kg (131.40 lb) |
| Installation | Wall mount; mobile bracket |
| Standby Power Consumption | 0.5 W |
| Packing List | 1x Smart interactive whiteboard, 1x Wireless plug-in module, 1x Power cord, 2 x Stylus pen, 1x Quick start guide, 1x Legal & regulatory info, 1x Wall mount bracket, 1x Accessory package, 1x Remote control |
| Glass Thickness | 3.2 mm |
| Ordering Information | Type: Smart interactive whiteboard, Model: HIK-IFP65MCD420, Description: 65 inch Smart interactive whiteboard |
