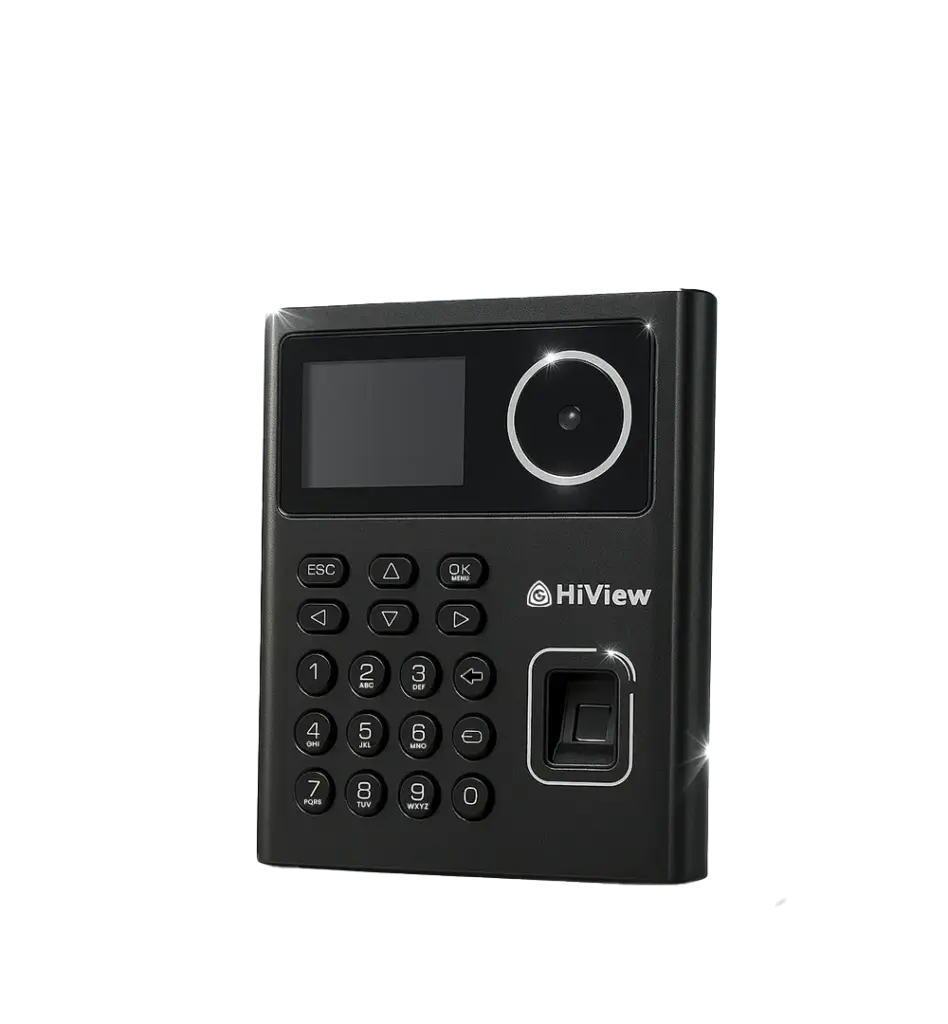

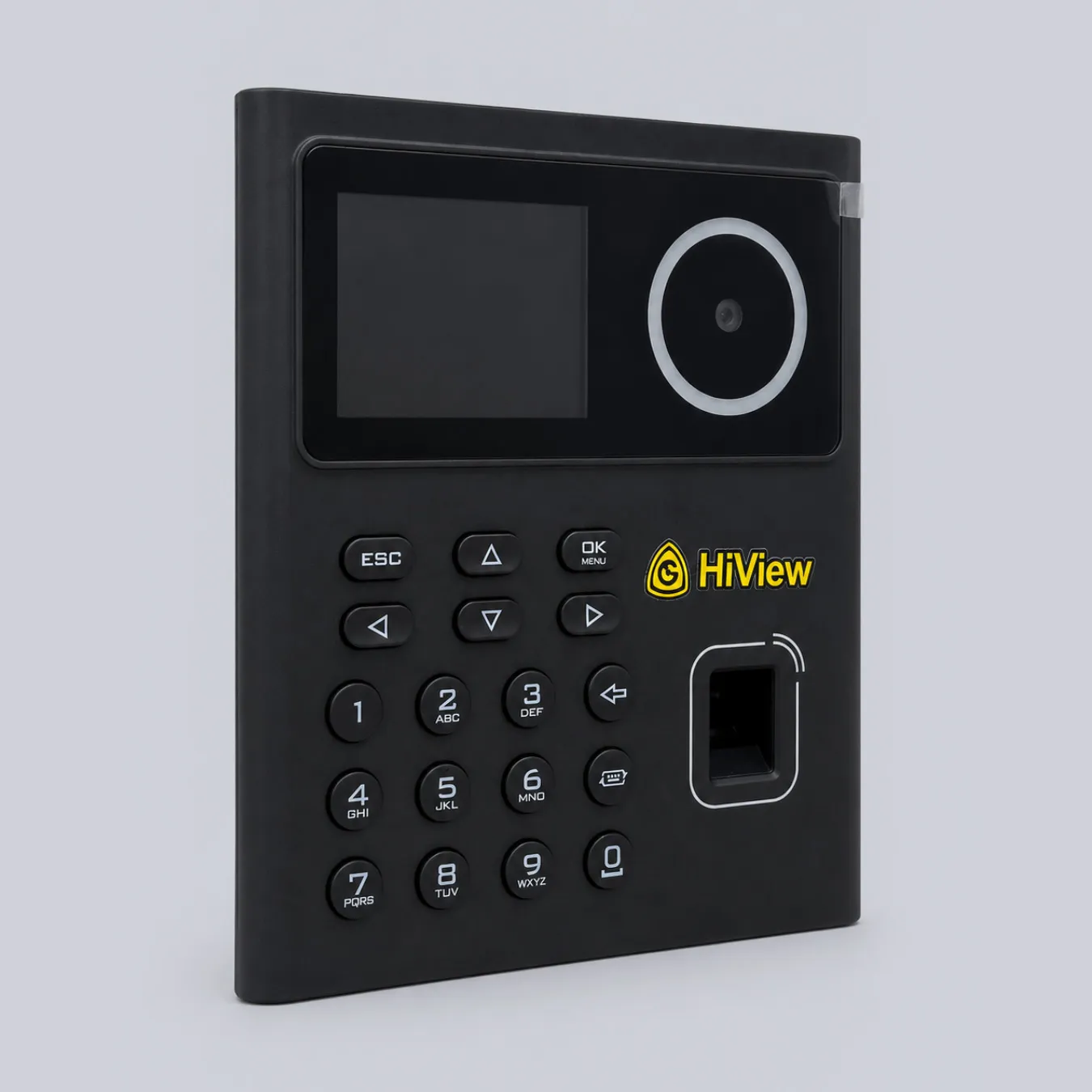

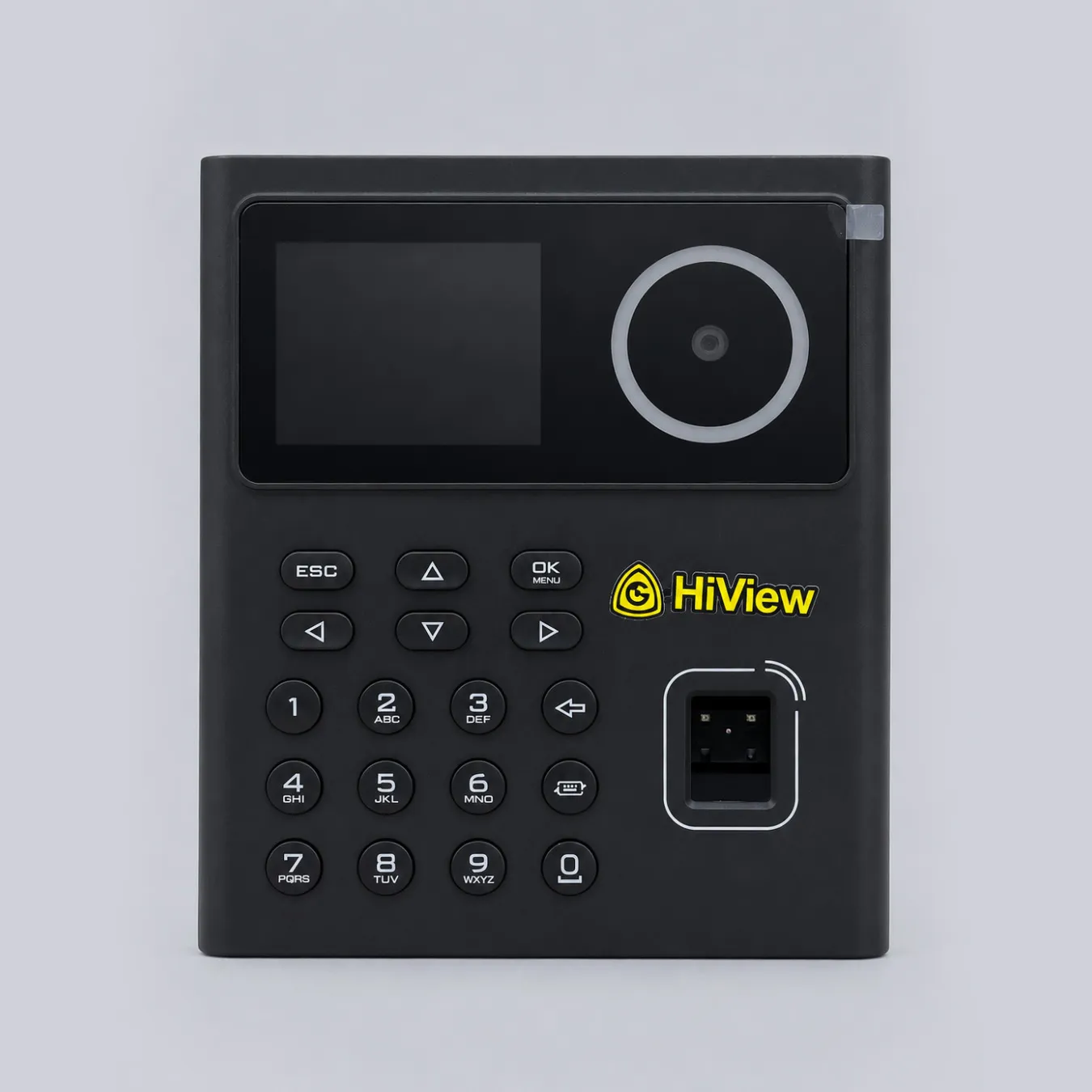

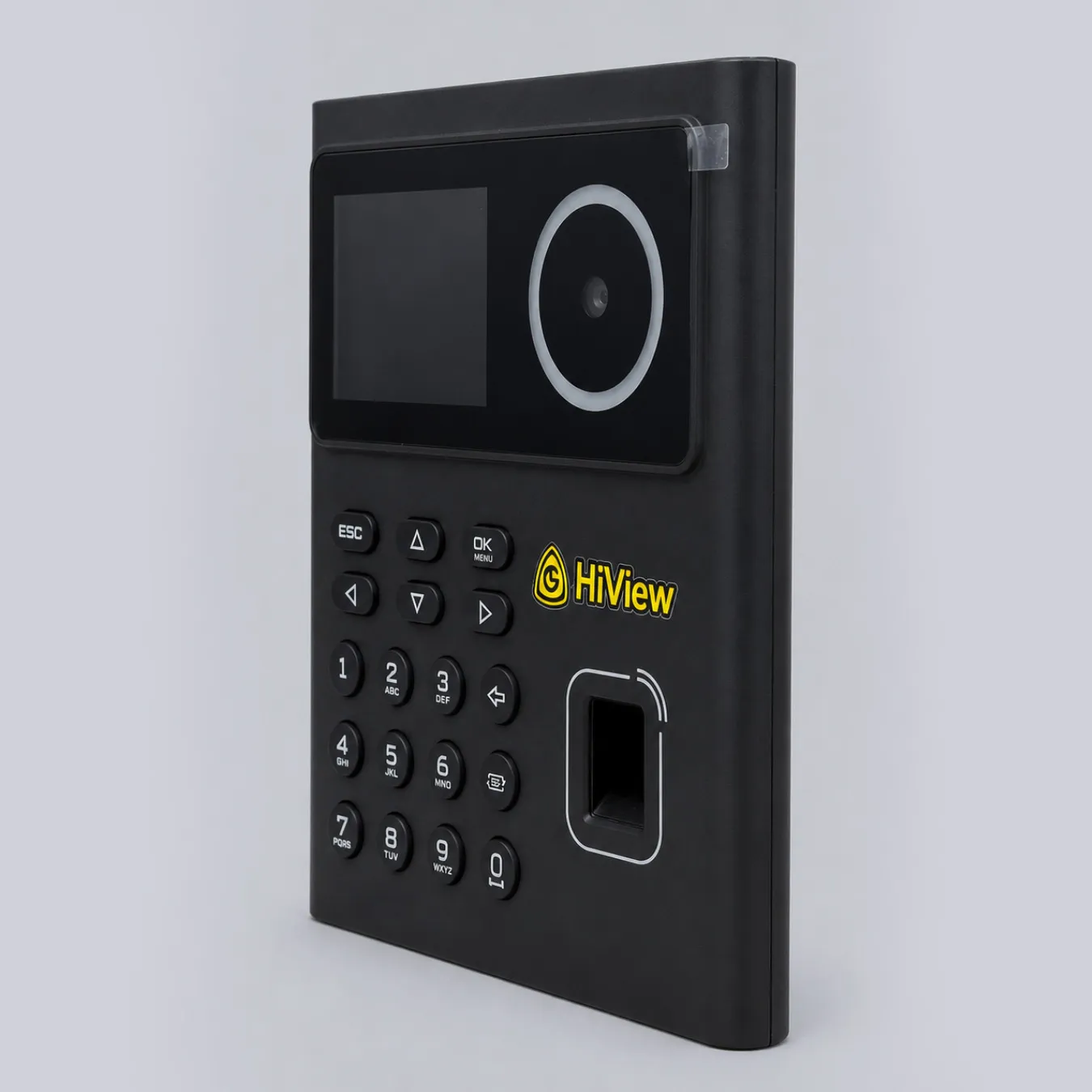

K1T320MFX-MFWX
Face Recognition Terminal
- 2.4-inch LCD screen, 2 MP lens
- Multiple authentication modes, including face, fingerprint, card, and PIN, etc.
- Supports Mifare card/Proximity Card
- Max. 500 faces, 1,000 cards, 1,000 fingerprints and 100,000 events
- Face recognition duration 0.2 s/User
- Supports ISAPI and ISUP 5.0 protocols
- Configuration via the web client
Tag: Access Control, Access Control
DATA SHEETPESAN SEKARANG
| System | |
|---|---|
| Operating System | Linux |
| Display | |
| Screen Size | 2.4 inch |
| Display Type | Display screen |
| Resolution | 320 x 240 |
| Video | |
| Lens | 1 |
| Video Compression Standard | PAL (Default) and NTSC |
| Resolution | 2 MP (video stream: 720P) |
| Field of View | HFOV = 43°; VFOV = 25° |
| Audio | |
| Audio Output | Built-in buzzer |
| Network | |
| Wired Network | 10 M/100 M self-adaptive |
| Wi-Fi | Not support |
| Interface | |
| Network Interface | 1 |
| Lock Control | 1 |
| Exit Button | 1 |
| Door Contact Input | 1 |
| Tamper | 1 |
| USB | 1 |
| Capacity | |
| Face Capacity | 500 |
| Fingerprint Capacity | 1,000 |
| Card Capacity | 1,000 |
| Event Capacity | 100,000 |
| Authentication | |
| Face Recognition Distance | 0.3 m – 1.5 m |
| Face Recognition Accuracy | > 99% |
| Face Recognition Duration | < 0.2 s |
| Card Type | Mifare1 card |
| Card Reading Distance | 0 ~ 5 cm |
| Function | |
| Face Anti-spoofing | Support |
| General | |
| Built-in Access Controller | Yes |
| Supplement Light | White light |
| Power Supply | DC 12 V |
| Power Consumption | ≤ 6 W |
| Working Temperature | -10 °C ~ 55 °C (14 °F ~ 131 °F) |
| Working Humidity | 0% ~ 90% |
