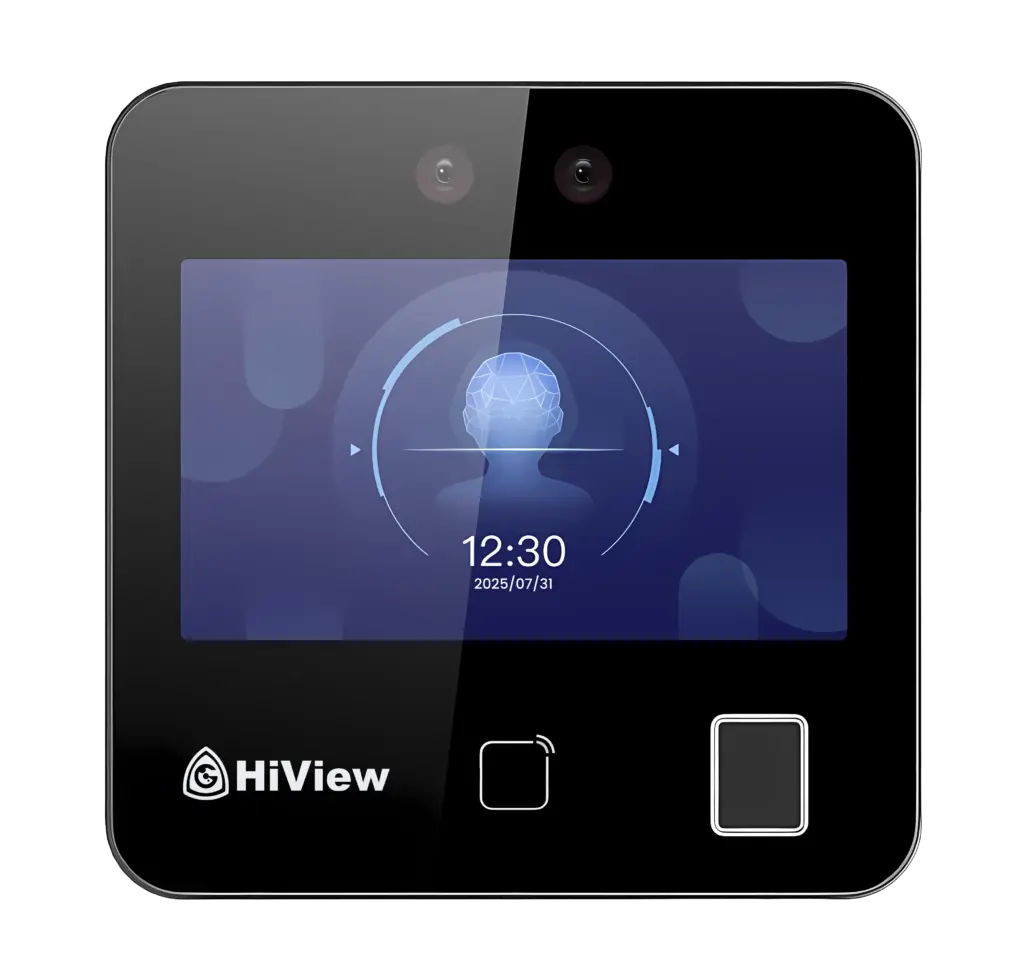

HIK-FRT43-FW
Face Recognition TerminalFace Recognition Terminal
- Max.1500 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards
- Face Recognition Terminal, 4.3-inch LCD touch screen, 2 Mega pixel wide-angle lens, Built-in M1 card reading module
- Two-way audio with client software, indoor station, and main station; Supports TCP/IP, Wi-Fi
- Supports ISAPI, ISUP5.0
- Configuration via the web client
- Face recognition. Distance: 0.3 m to 1.5 m
- Duration < 0.2 s/User
- Accuracy rate ≥ 99%
Tag: Access Control, Access Control
DATA SHEETPESAN SEKARANG
| Display | |
|---|---|
| Screen Size | 4.3 inch |
| Operation Method | Capacitive touch screen |
| Display Type | LCD |
| Video | |
| Lens | 2 |
| Resolution | 2 MP |
| Audio | |
| Audio Quality | Noise suppression and echo cancellation |
| Network | |
| Wired Network | Support |
| Wi-Fi | Support, 2.4 G, 802.11b/g/n |
| Interface | |
| Network Interface | 1 RMS, 10/100 M self-adaptive |
| Lock Control | 1 |
| Exit Button | 1 |
| Door Contact Input | 1 |
| Tamper | 1 |
| RS-485 | 1 RS-485 (Half duplex, Hikvision) |
| Wiegand | 1 Wiegand (Hik 26bit, Hik 34bit) |
| USB | 1 |
| Authentication | |
| Card Type | M1 card |
| Card Reading Frequency | 13.56 MHz |
| General | |
| Power Supply | 12 VDC, 1A (power adapter included) |
| Working Temperature | -10 °C to 40 °C (14 °F to 104 °F) |
| Working Humidity | 0 to 90% (No condensing) |
| Dimensions | 118.4 mm x 118.4 mm x 21.8 mm (4.66” x 4.66” x 0.86”) |
| Installation | Wall mounting, base mounting |
| Gross Weight | 0.71 kg (1.57 lb) |
| Net Weight | 0.23 kg (0.51 lb) |
| Application Environment | Indoor |
| Language |
English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean, Japanese |
| Platform | Hik-ProConnect and HikCentral Professional |
| Face Anti-spoofing | Support |
